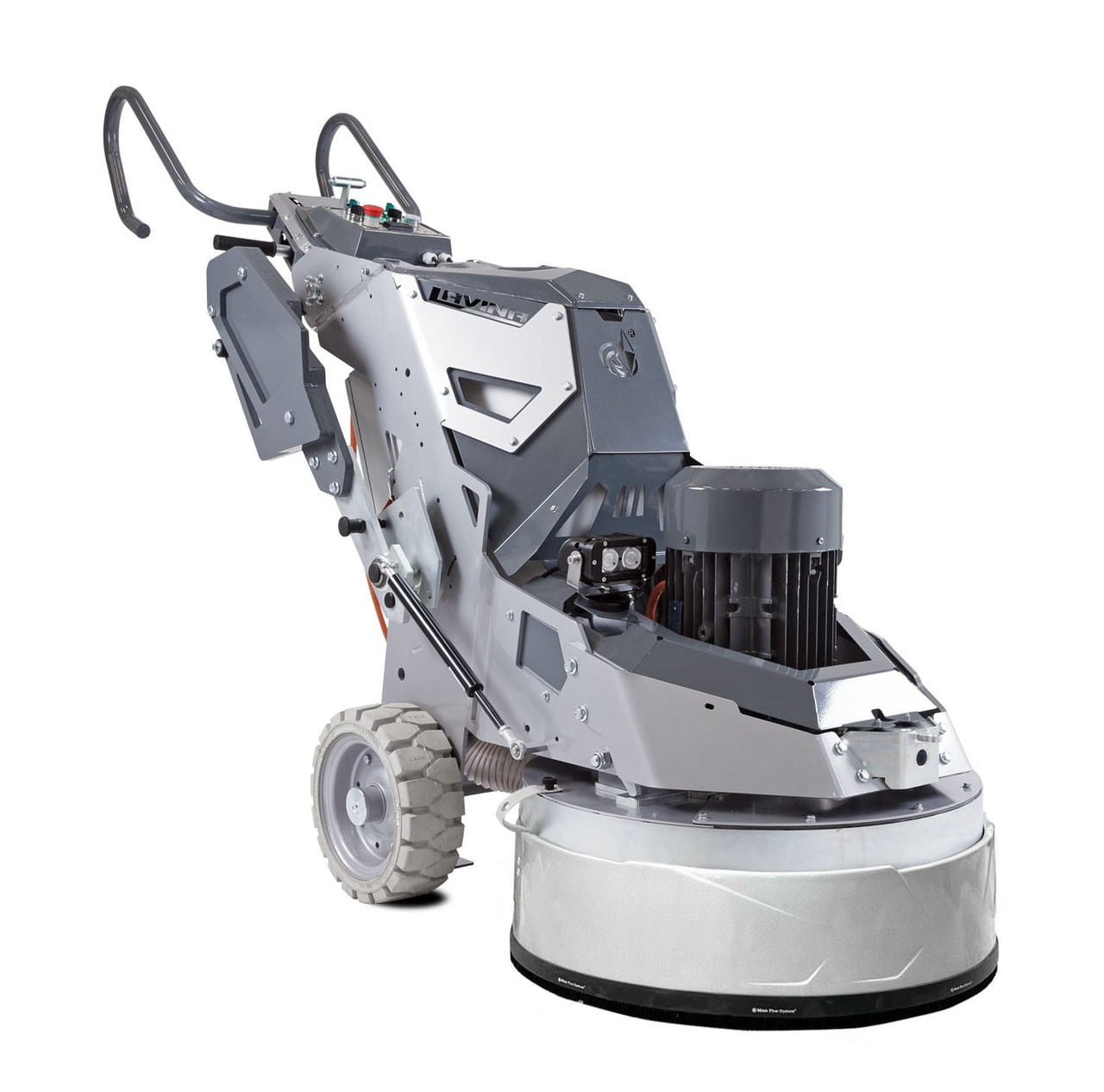

The new Lavina Series 7 25" L25LS7 electric floor grinder features a sealed, dust-proof grinding head along with several other features, benefits and updates from Superabrasive!
Longer service life and less maintenance.
- Completely redesigned chain-driven planetary drive with no chain tensioner
- New stronger timing belt
- Upgraded shafts, seals and bearings
- New lighter timing pulleys for better power transmission
- New 2-piece aluminum main belt housing with belt inspection cover for longer belt life and less maintenance
New frame design:
The redesigned frame and weights make tool changes easier than ever. The isolated the grinding head with rubber bushings create less vibrations. A new most-intuitive handle bar yields faster adjustability and more positions.
Additional New Features:
- New weights for faster position change
- Redesigned frame allowing easier tool changes
- New ergonomic handle design – faster adjustability and more positions
- Rubber bushing used at head attachment points – less vibrations for user
- Water tank cap
- Internal storage compartment
*Lavina Free Tooling Offer ends 12/30/24
- Power:
- 15 HP
- Voltage (50-60 Hz):
- 3 phase, 200-240V
- Amperage (max):
- 45 Amp
- Weight of Machine:
- 884 lbs
- Grinding Pressure:
- 342-520 lbs
- Tool Holder RPM:
- 400-1100 rpm
- Working Width:
- 26.5 in
- Tool Holders (Left Rotation):
- 3x9 in
- Vacuum Hose Port:
- Camlock E250
- Water Feed (tank or hose connection):
- gravity-fed
- Water Tank:
- 5.2 gal
- Cable Length:
- 57 ft
- Machine Size L x W x H:
- 84 x 29 x 46 in
- Grinder Series:
- S7
- Grinder Type:
- Planetary
